Voice Recording & Audio DSP Modules (A93010 / A96020)
Product Overview
High-fidelity digital audio recording and playback modules with integrated noise suppression DSP, designed for medical procedure audio logs and intercoms.
A93010A — Single 40-Second Voice Message
The A93010A module records and plays back a single high-quality audio message of up to 40 seconds. All capture, storage, and output functions are handled on-chip, enabling rapid integration into battery-powered designs that require reliable voice prompts.
- Non-volatile flash memory technology
- Up to 40-second high-quality audio recording
- No battery backup required for data retention
- Built-in condenser microphone
- Simple two-key operation for record and playback
- 3 V to 6 V supply range
- Status LED indicates recording and playback states

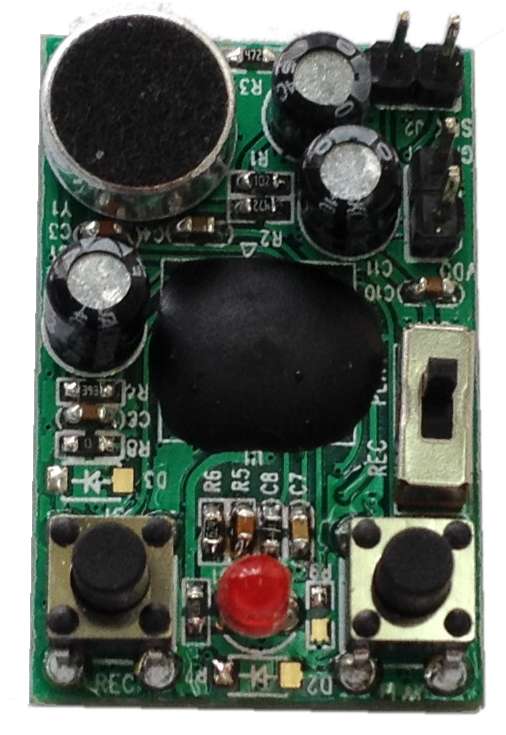

A96020 — Dual 20-Second Voice Messages
The A96020 module stores two independent 20-second messages while retaining the same self-contained architecture. Dedicated controls simplify message selection and playback in kiosks, appliances, and medical devices that require multiple prompts.
- Non-volatile flash memory technology
- Dual 20-second high-quality audio segments
- Slide switch toggles record and playback modes
- No battery backup requirement for flash memory
- Built-in condenser microphone
- Dedicated button for message selection
- 3 V to 6 V operation with LED status indicator
Order & Technical Support
For custom requirements or integration support, please contact us.
