Active Alignment (AA) Lens Calibration Services

Product Overview

High-precision Active Alignment 6-axis optical lens assembly and calibration services, guaranteeing uniform edge-to-edge MTF sharpness for micro cameras.

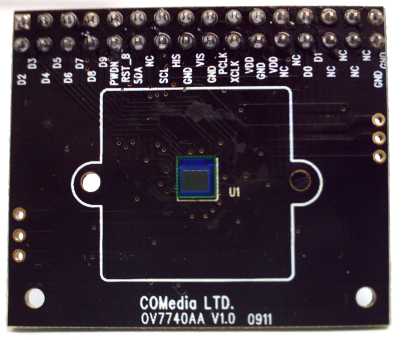

AA7740 VGA Camera Module

Based on the OV7740 VGA sensor, AA7740 offers high sensitivity imaging in a compact 41 × 31 mm footprint with optional integrated precision lens.

• VGA CMOS image sensor OV7740
• Sensor array: 640 × 480 pixels
• 1/5" optical lens format
• Progressive scan output
• Serial Camera Control Bus (SCCB) interface
• Single 3.3V power supply operation
• Low power consumption (< 120 mW)
• Optional precision built-in lens assembly

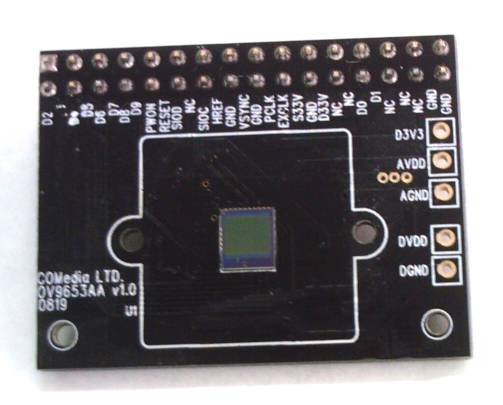

AA9653 Megapixel Camera Module

AA9653 leverages the OV9653 megapixel sensor and supports multiple output formats and frame rates while retaining the same compact board size.

• Megapixel CMOS image sensor OV9653
• Sensor array: 1300 × 1028 pixels
• 1/4" optical lens format
• Supports SXGA, VGA, QVGA, CIF, QCIF resolutions
• Frame rates: VGA @ 30 fps, QVGA @ 60 fps, QCIF @ 120 fps
• Output formats: RAW RGB, GRB422, YUV422
• Progressive scan digital output
• Serial Camera Control Bus (SCCB) interface
• Single 3.3V operation with < 120 mW power dissipation
• Optional built-in high resolution lens
