Rigid-Flex & Flexible PCB (FPC) Assemblies
Product Overview
Custom flexible and rigid-flex PCB fabrication, micro-coaxial cable fine-pitch soldering, and biocompatible medical distal end packaging.

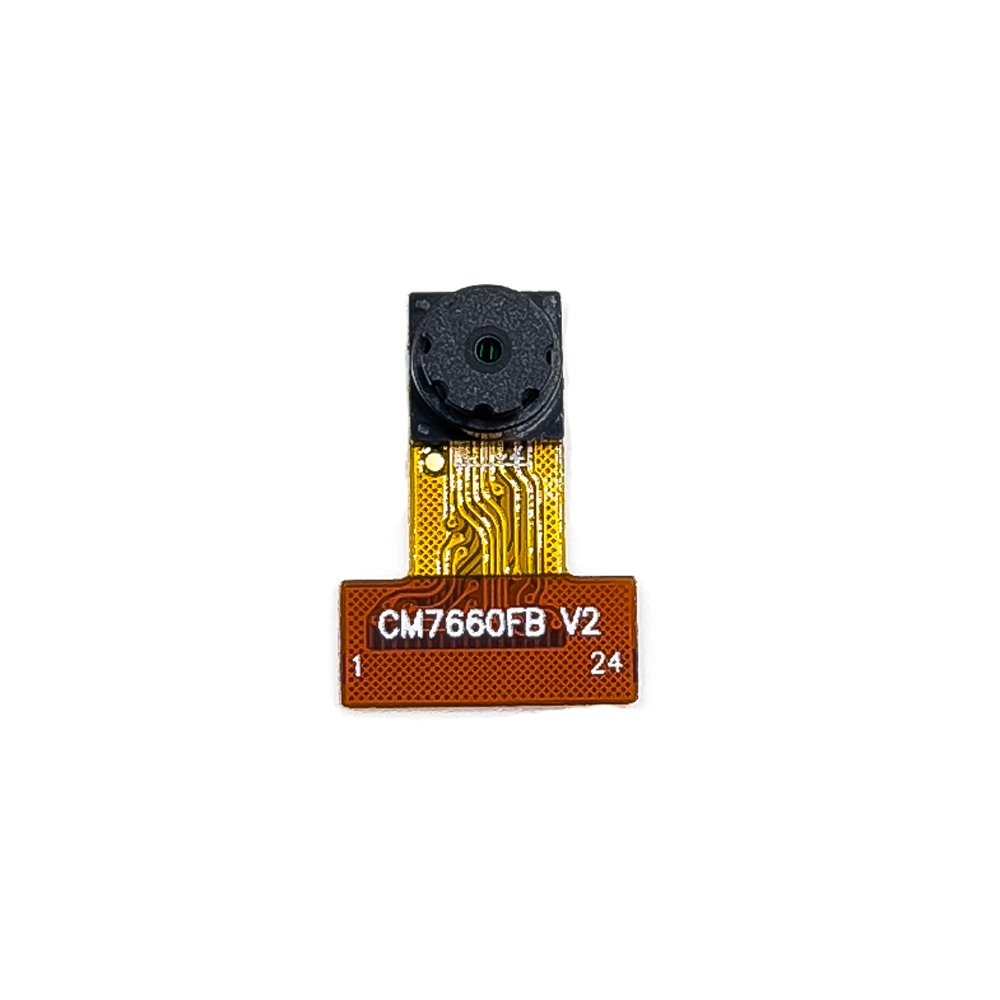

7660FB Flexible PCB Camera Module
The 7660FB leverages the OV7660 VGA sensor and a petite flex cable assembly to enable compact, low-power imaging.
- Small size, low cost, low power consumption
- Flexible cable with board-to-board connector
- Serial Camera Control Bus (SCCB) interface
- Resolution: 640 × 480 (VGA)
- Imager: OV7660 CMOS sensor
- Lens format: 1/5" with f3.1 mm, F2.8 optics
- 24-pin board-to-board interface
- Compact module size: 6.5 × 6.5 × 4.8 mm

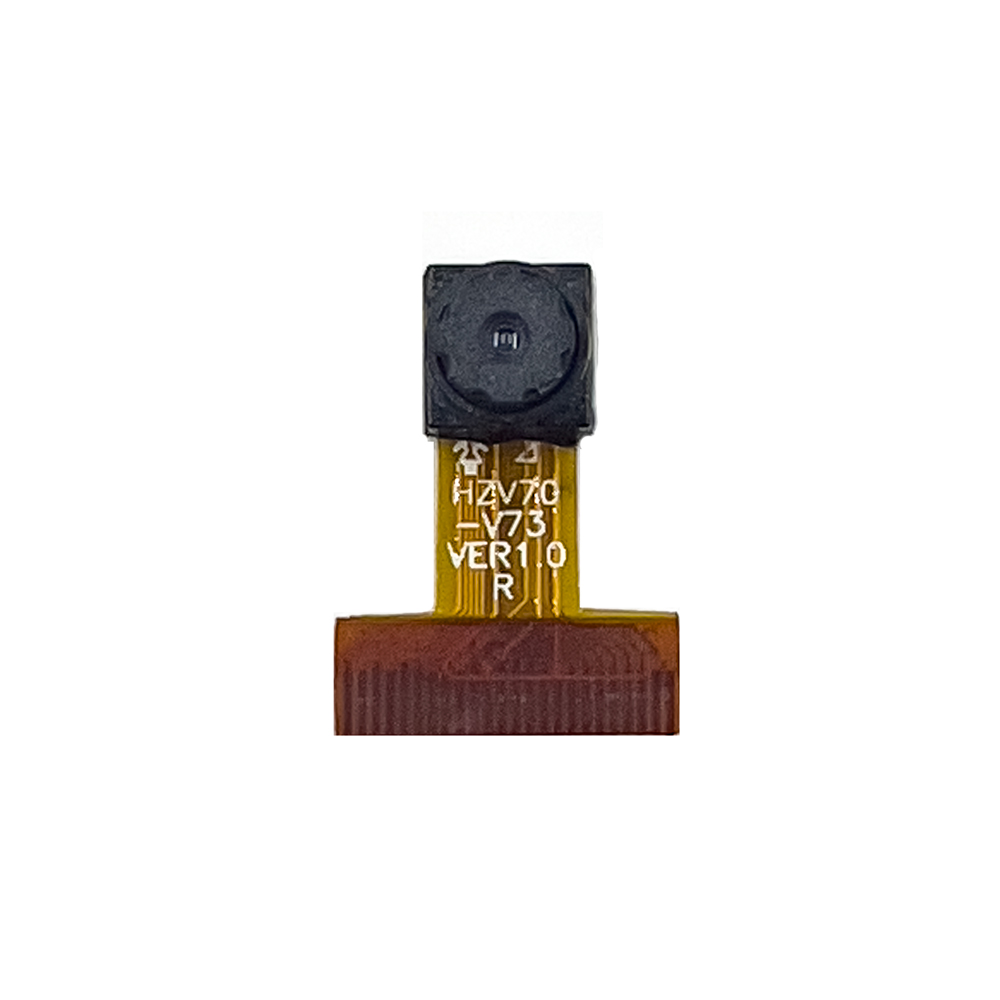

7670FB Flexible PCB Camera Module
The 7670FB is engineered for low-light sensitivity and rich image processing, making it suited to embedded portable devices that demand flexibility and performance.
- High sensitivity for low-light operation
- Low operating voltage for embedded portable applications
- Lens shading correction and 50/60 Hz flicker detection
- Automatic de-noise level adjustment
- Supports image sizes from VGA and CIF down to 40 × 30
- VarioPixel sub-sampling method
- ISP with noise reduction and defect correction
- Supports LED and flash strobe modes
- Output formats: Raw RGB, RGB565/555/444, YUV 4:2:2, YCbCr 4:2:2
- Image quality controls: saturation, hue, gamma, sharpness, anti-blooming
- Automatic saturation (UV) and edge enhancement adjustments
