USB 2.0 Video Processing Boards (C8209 Series)
Product Overview
The C8209 series converts camera sensor signals into standard USB 2.0 UVC digital video streams, compatible with Windows, macOS, Linux, Android, and iOS (iPad) without third-party drivers.
A UVC Extension Unit extends standard USB Video Class capabilities with advanced image-processing functions, compression options, and device-specific controls—ideal for specialized medical and industrial workflows.
Key Features
- Direct USB 2.0 digital video output via standard UVC protocol
- Plug-and-play operation across Windows, macOS, Linux, Android, and iPad
- Sensor auto-detection with real-time video stream generation
- Hardware automatic white balance (AWB) and exposure control
- Integrated multi-level LED dimming (via UVC Extension Unit)
- Snapshot trigger and video recording API for custom medical software
- Low-latency video streaming
- Compact board dimensions, ideal for handheld devices
Compatibility & Model Selection
| Module | Compatible Cameras | LED Configuration |
|---|---|---|
| C8209DP | muC103P / muC108P / muC110P | External 1 W LED (not included) |
| C8209DL | muC103L1 / muC103L2 / muC110L1 | On-camera 20 mA LED |
| C8209ML | mCam703L2 / mCam101L2 / mCamA10L4 | On-camera 20 mA LED |
| C8209HP | muC103P / muC110P / muC112P | External 1 W LED (not included) |
| C8209HL | muC103L1 / muC103L2 / muC110L1 / muC112L2 / muC112L2S | On-camera 20 mA LED |
Order & Technical Support
For purchasing information or technical support, please visit our official eShop.

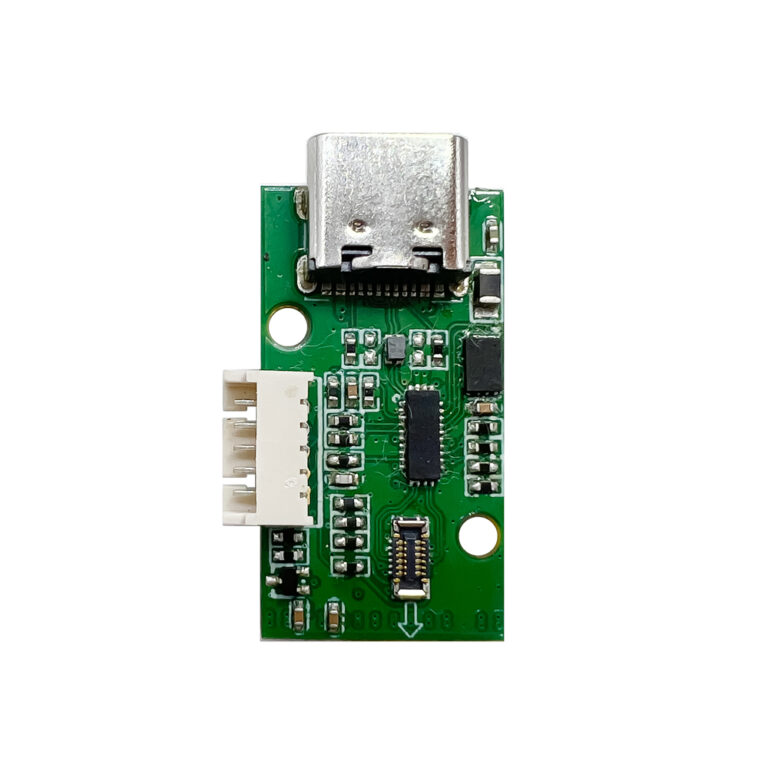

UCSPF1 Packaged USB Camera Module

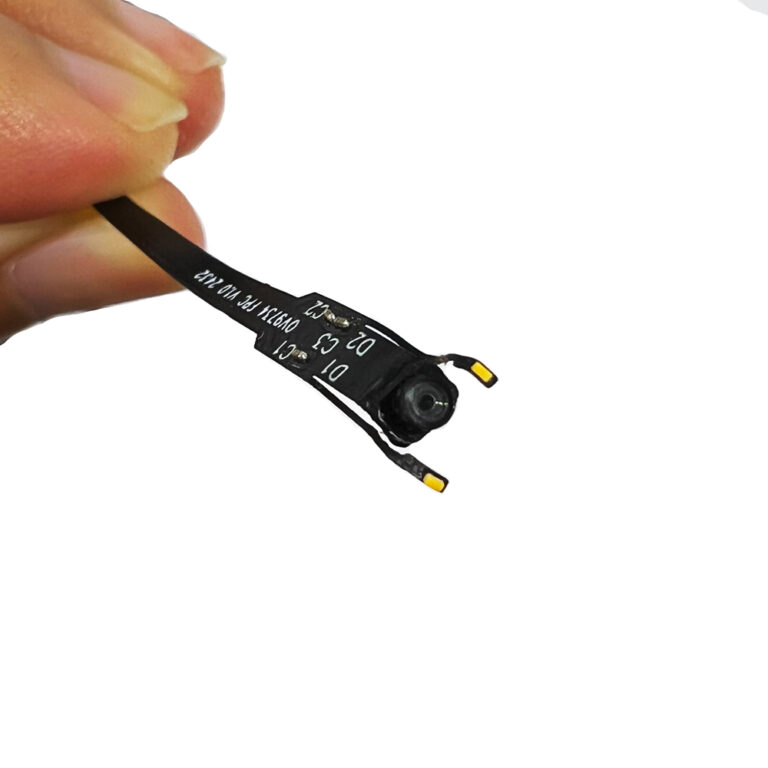

The UCSPF1 camera module is an integrated plug-and-play USB endoscopy sub-system. It combines the 720p HD camera, on-tip circular LED illumination, and USB 2.0 UVC backend processing in a single compact housing.
Key Features
- Max resolution: 1280 × 720 @ 30 fps
- USB 2.0 Type-C interface
- UVC plug-and-play compatibility
- 5 V USB power
- Integrated LED driving circuit for tip illumination

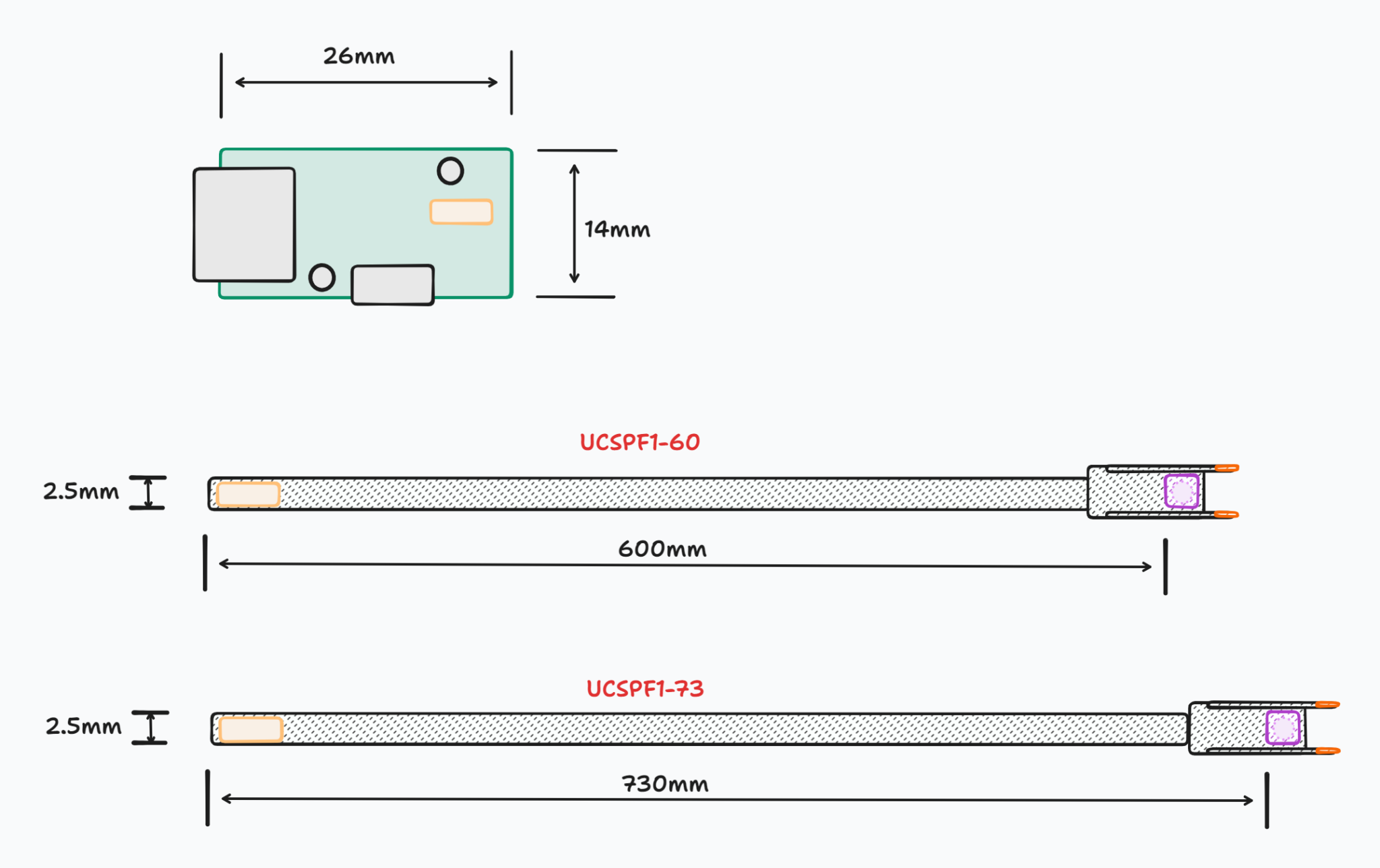

- Compact footprint (26 mm × 14 mm)
- Snapshot and auto white balance functions
- FPC cable connection design for camera module
- Supports MJPEG and YUY2 formats
Order & Technical Support
For purchasing information or technical support, please visit our official eShop.
