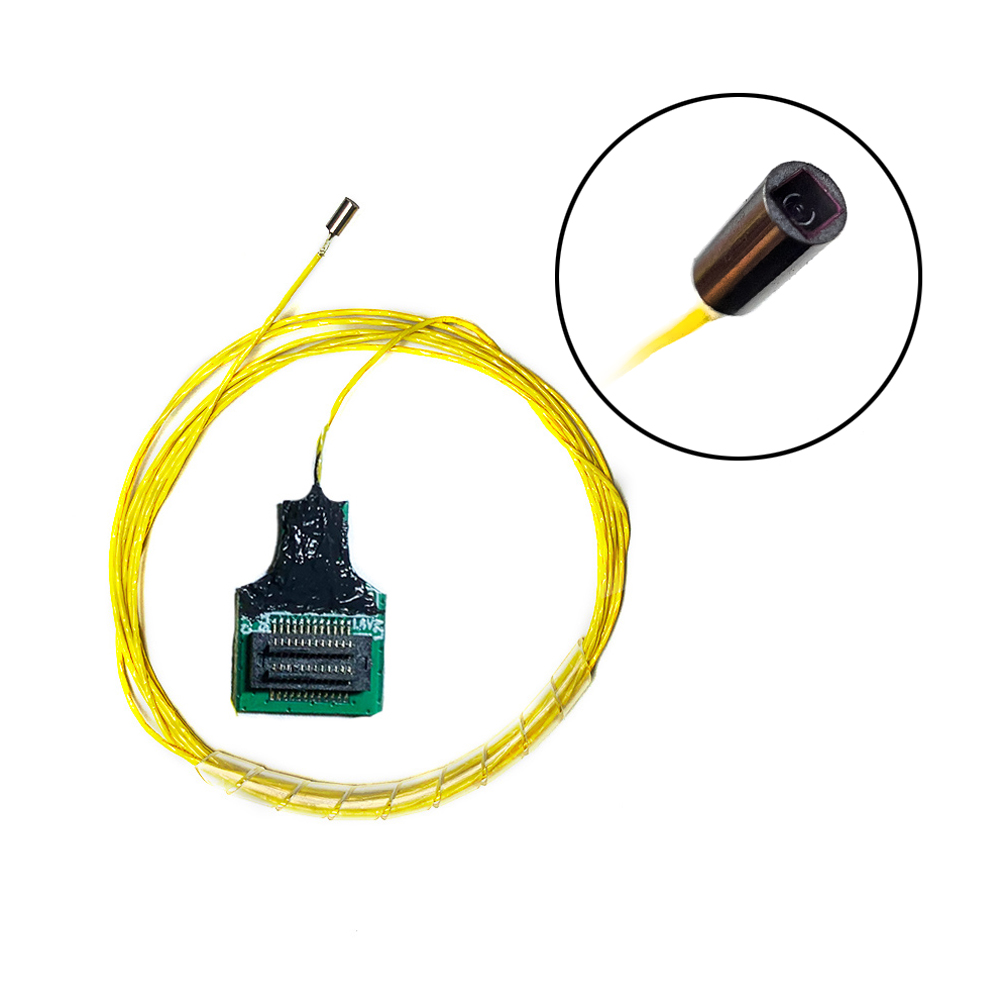

The muC103 series utilizes the OVM6946 CMOS sensor, integrating pixel array, signal timing, and control circuitry. It delivers clear video at 400x400 resolution at 30 fps, designed specifically for medical bronchoscopes, ureteroscopes, and micro-inspection catheter devices.
| Specification | Value |
|---|---|
| Video Output | Analog |
| CMOS Sensor | OVM6946 |
| FOV (Field of View) | 120 deg diagonal |
| F/No | 5.0 |
| Picture Elements | 400x400 pixels |
| Operation Voltage | 3.3VDC |
| Dynamic Range | 67.1dB |
| Optical Format | 1/18” |
| Power Consumption | 25mW |
| S/N Ratio | 34.4dB |
| Relative Illumination | 60.7% |
| Working Distance | 5mm ~ 50mm |
| Data Format | Raw RGB |
| Pixel Size | 1.75x1.75um |
| Scan Mode | Progressive |
| Clock Rate | 4MHz |
| IR Cut-Off Filter | 665+/-10nm |
