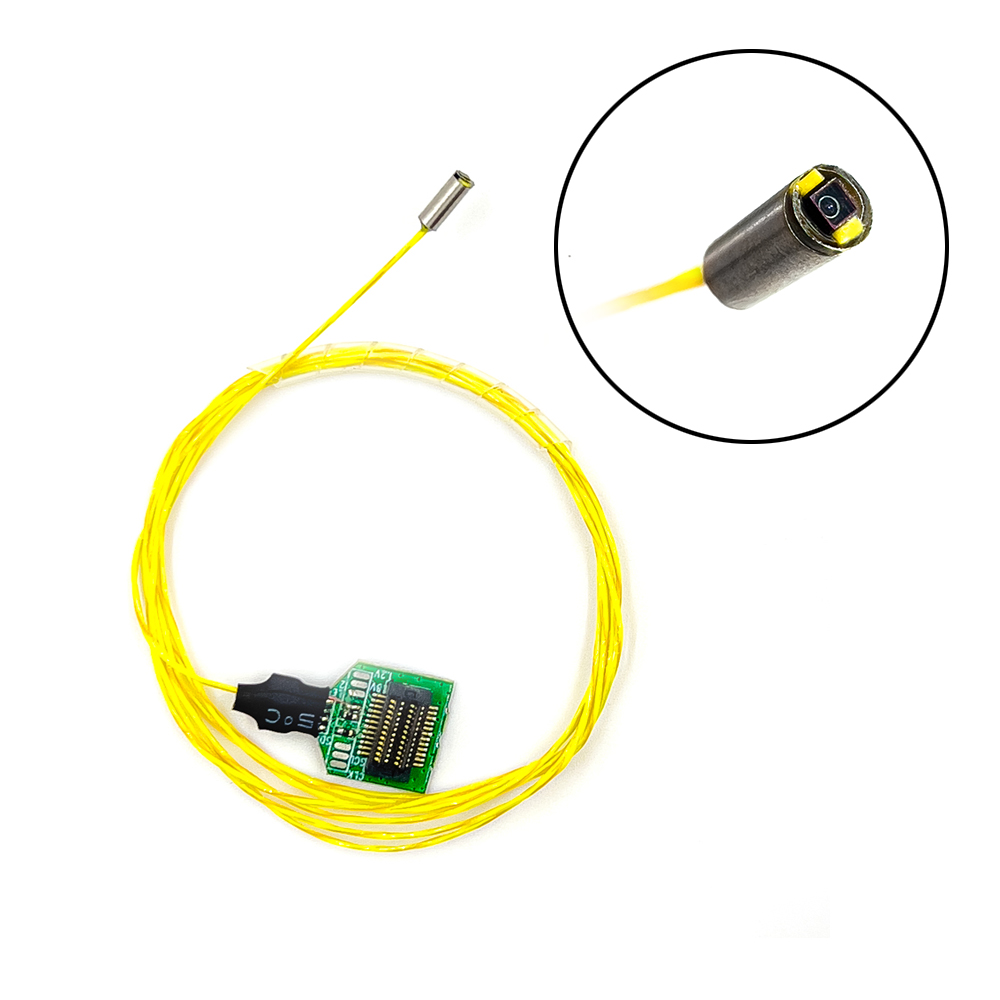

The muC112 series features the OmniVision OCHFA10 CMOS image sensor with advanced CameraCubeChip wafer-level packaging, delivering sharp 720x720 resolution @ 30fps for single-use medical endoscopes, catheters, and precision industrial inspection.
| Specification | Value |
|---|---|
| Video Output | Analog |
| CMOS Sensor | OCHFA10 |
| FOV (Field of View) | 120 deg diagonal |
| F/No | 5.0 |
| Picture Elements | 720x720 pixels |
| Operation Voltage | 3.3VDC |
| Optical Format | 1/17.5" |
| Power Consumption | 25mW |
| Working Distance | 5mm ~ 50mm |
| Data Format | Raw RGB |
| Pixel Size | 1.008x1.008µm |
| Scan Mode | Progressive |
| Clock Rate | 4MHz |
| IR Cut-Off Filter | 665+/-10nm |
