CVBS Analog Video Processing Boards (C8261 / C8201)
Product Overview
The C8261 and C8201 boards provide legacy NTSC/PAL composite analog video (CVBS) output for existing medical carts, legacy CRT monitors, and industrial video recorders.

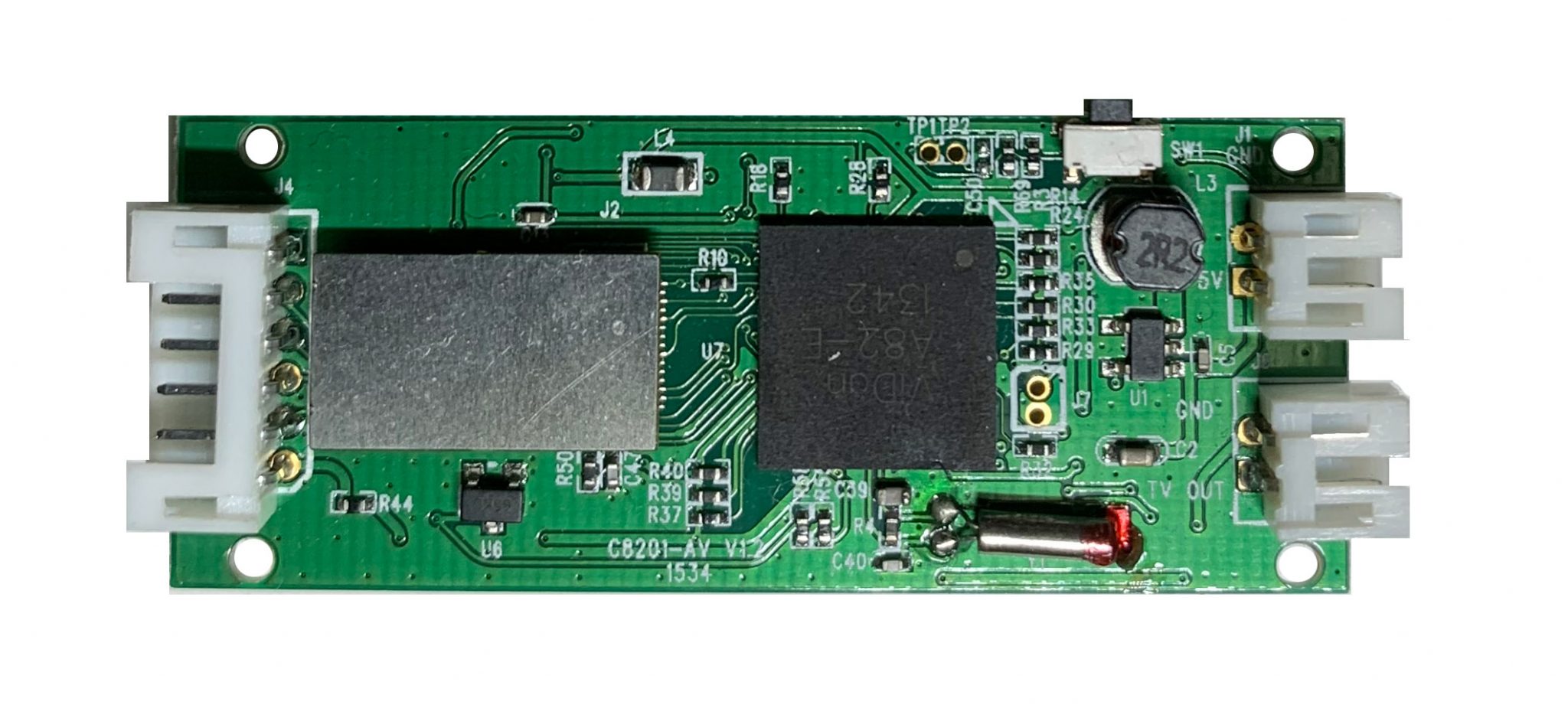

C8261

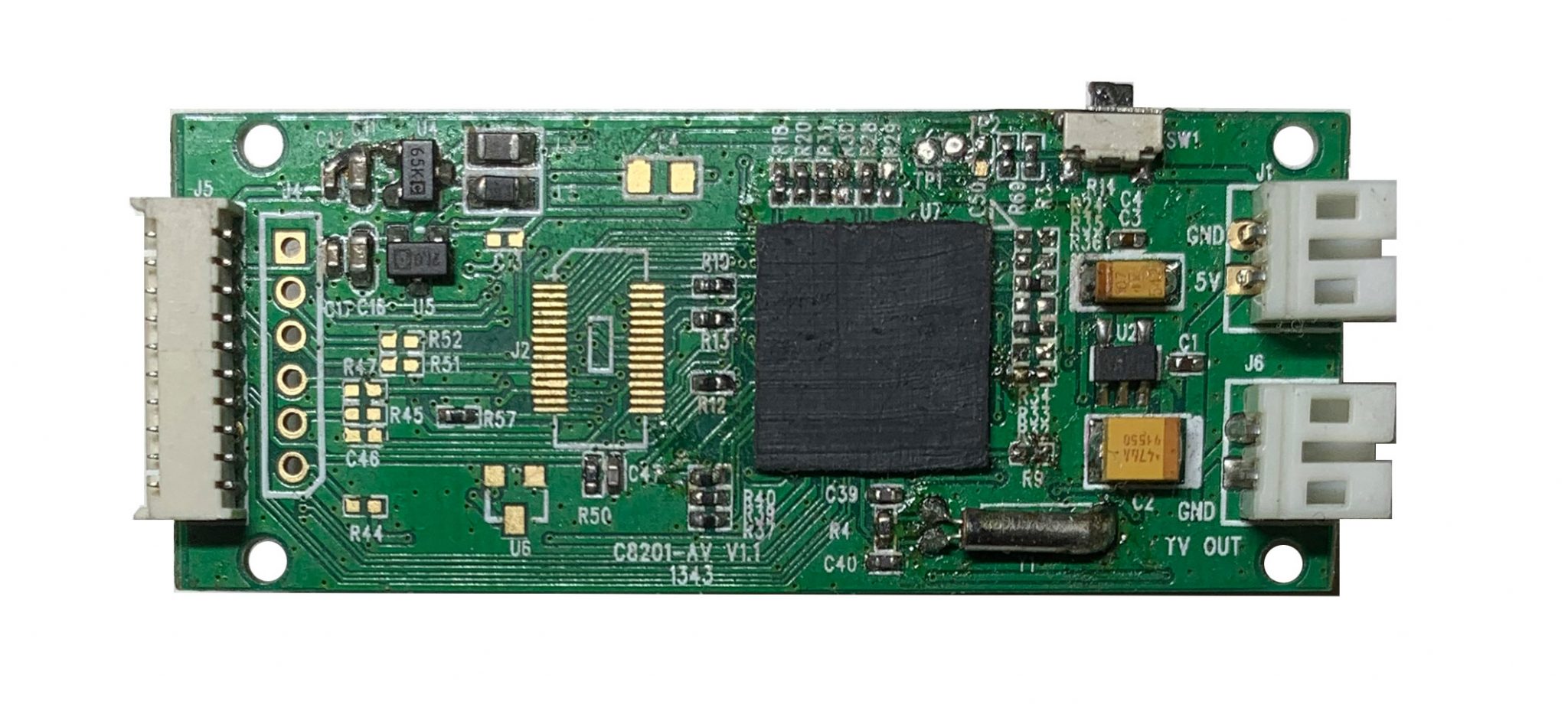

C8201-VGAKey Features
- Composite (CVBS) analog video output (75Ω BNC/RCA)
- Centered image display
- 5V DC power input with low power dissipation
- PAL (576i) and NTSC (480i) television standard compatibility
Compatibility & Model Selection
| Module | Compatible Cameras |
|---|---|
| C8261 | muC103T |
| C8201-VGA | mCam501 |
Order & Technical Support
For purchasing information or technical support, please visit our official eShop.

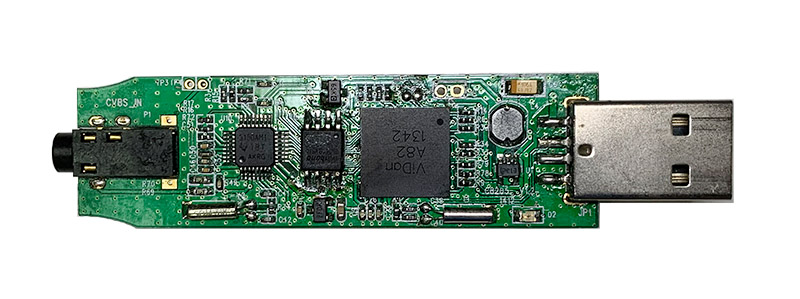

C8205 CVBS to USB UVC Video Converter
The C8205 module converts incoming CVBS signals to USB video streams using a UVC-compliant interface. It is a plug-and-play solution for capturing analogue video on modern PCs, supporting Windows and select Linux kernels without dedicated drivers.
Key Features
- USB 2.0 UVC driver-free digital streaming
- Automatic PAL / NTSC composite input detection
- Powered directly from the USB port without external AC adapter
Order & Technical Support
For purchasing information or technical support, please visit our official eShop.
