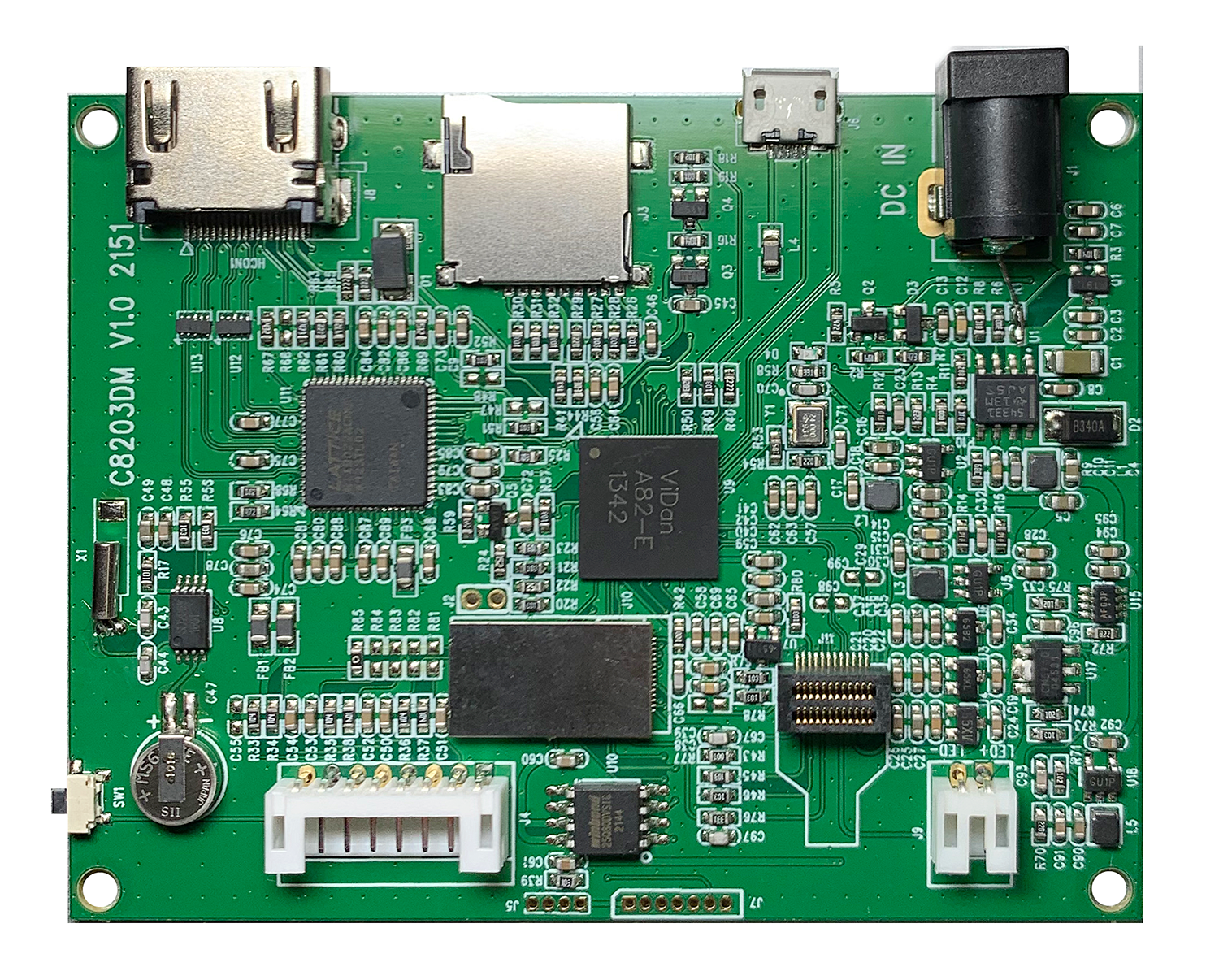

HDMI Video Processing Boards (C8203 Series)
Product Overview
The C8203 series provides low-latency hardware decoding from DVP and MIPI camera sensor inputs directly into HDMI digital video output, featuring one-touch auto white balance and MicroSD recording.
D: DVP parallel camera interface
M: MIPI CSI-2 high-speed interface
P: External high-power LED driver
L: On-camera micro LED driver
Note: MIPI (M) variants support on-tip LED lighting.
Key Features
- Real-time 1280 × 720 @ 60 fps HDMI digital video output
- Auto sensor detection and dynamic parameter loading
- Simple one-touch operation for automatic white balance (AWB)
- AVI video recording and JPG snapshot capture
- MicroSD storage support up to 32 GB
- Image quality fine tuning (brightness, contrast, saturation, sharpness)
- RTC (Real-Time Clock) with battery backup
- Constant-current driver for external high-power LED
- Built-in multi-level LED brightness adjustment
- DC 12V input with wide range support (up to 18V)
- Dedicated GPIO inputs for physical push-button controls
Compatibility & Model Selection
| Module | Compatible Cameras | LED Configuration |
|---|---|---|
| C8203DP | muC103P / muC108P / muC110P | External 3 W LED (not included) |
| C8203DL | muC103L1 / muC103L2 / muC110L1 | On-camera 20 mA LED |

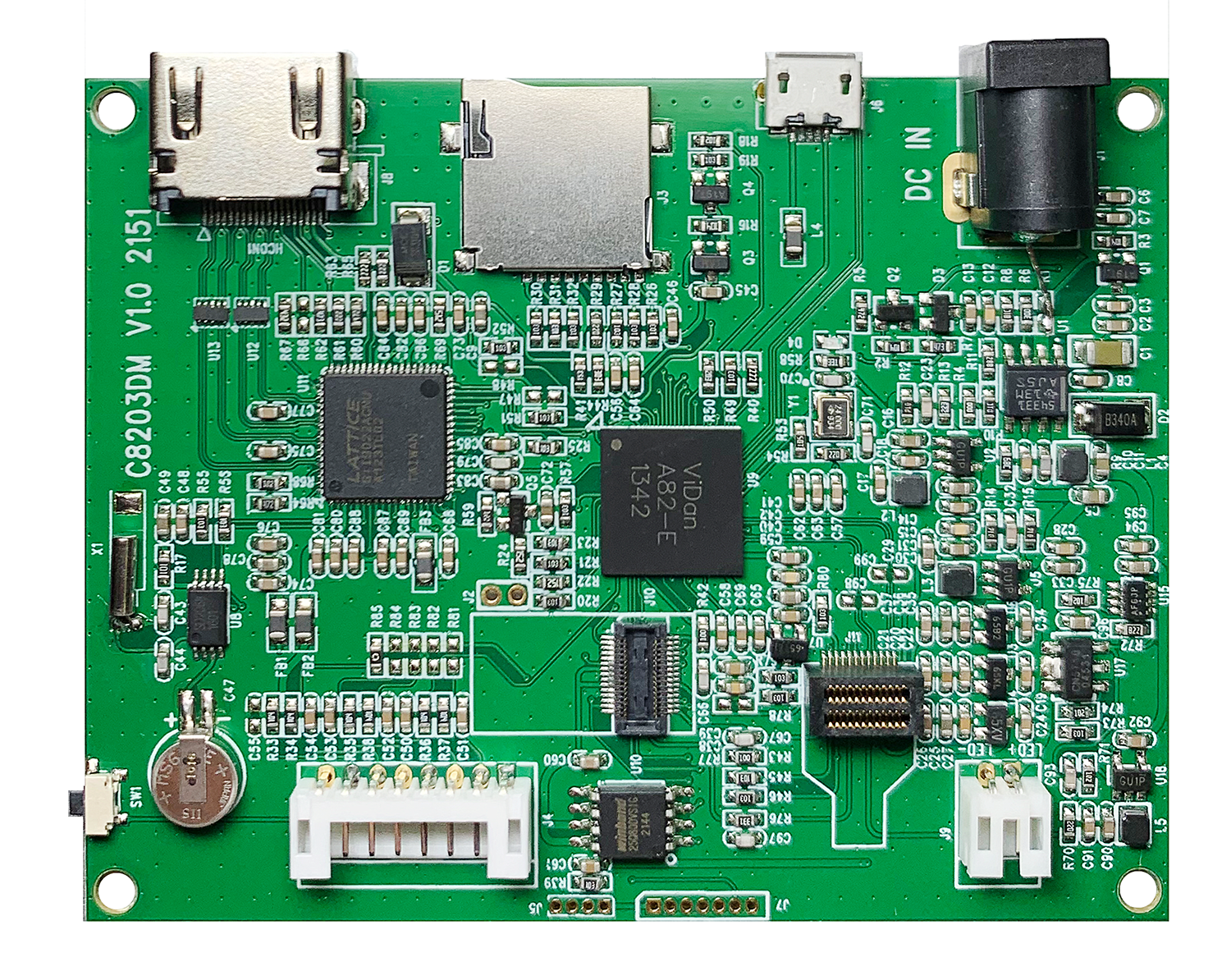

| C8203ML | mCam703L2 / mCam101L2 / mCamA10L4 | On-camera 20 mA LED |
| C8203HP | muC110P / muC103P / muC112P | External 3 W LED (not included) |
| C8203HL | muC110L1 / muC103L1 / muC103L2 / muC112L2 / muC112L2S | On-camera 20 mA LED |
