Back End Modules for micro Cameras

USB UVC

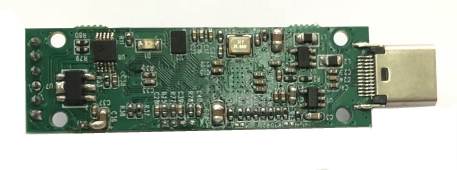

C8282 - for muC108
  • USB type C connector
  • output JPG
  • external LED control
  • external button trigger
  • standby mode when idle

USB UVC

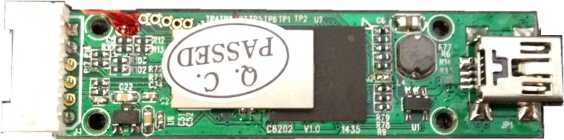

C8202 - for muC30x
  • USB UVC no driver needs for PC
  • output JPG/YUV2 optional
  • powered by USB port
  • status LED
  • standby mode when idle

USB UVC

C8262 - for muC10x
  • USB UVC no driver needs for PC
  • output JPG/YUV2 optional
  • powered by USB port
  • status LED
  • standby mode when idle

USB UVC

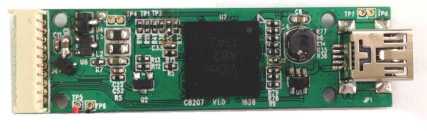

C8207 - for muC70x
  • USB UVC no driver needs for PC
  • output JPG optional
  • powered by USB port
  • status LED
  • standby mode when idle

AV Output

C8203-HDMI output
  • connect to HDMI monitor
  • real time display
  • 1080p/60frame output
  • image capture
  • options for muC103T/mCam703

AV Output

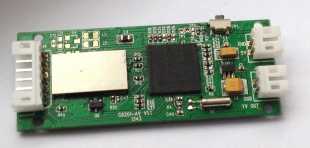

C8201 - for muC30x
  • CVBS output
  • plug and play
  • video display in center of monitor
  • 5VDC

AV Output

C8261 - for muC103
  • CVBS output
  • plug and play
  • video display in center of monitor
  • 5VDC

AV Output

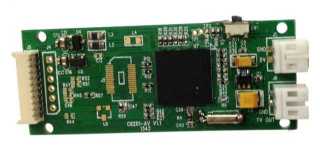

C8201-VGA - for VGA camera
  • CVBS output
  • plug and play
  • 5VDC

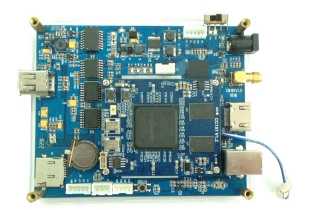

FPGA EV board

for OV6946/OV6930
  • data isolation
  • AEC/AGC/AWB
  • hardware scale to 800x800
  • HDMI 1080p/60fps

TFT Output

C82830 - for muC30x
  • 3" ISP panel for handheld application
  • built in battery level detect
  • still picture capture and video recording
  • manual color balance
  • LED to indicate operation status

TFT Output

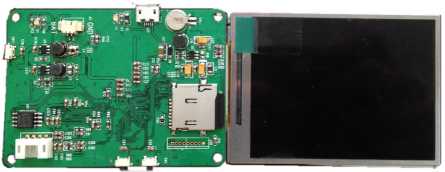

C82846 - for muC103
  • 3" ISP panel for handheld application
  • built in battery level detect
  • still picture capture and video recording
  • manual color balance
  • LED to indicate operation status

TFT Output

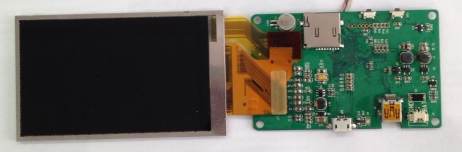

C82880- for muC703
  • 3.5" IPS panel
  • full screen display of 720p
  • real time display at 30fps
  • 4.2V Lithium battery operation
  • battery level detect
